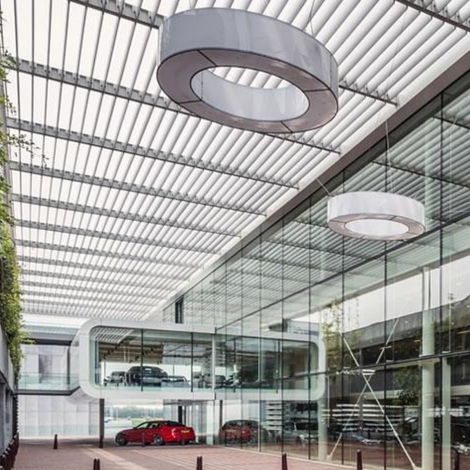

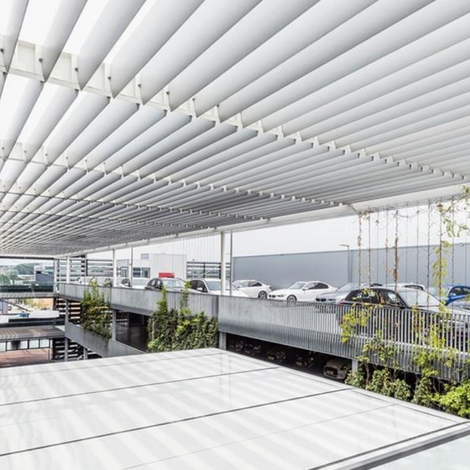

1. Enkel lamel vast horizontaal

Enkel lamel vast horizontaal

Vaste enkele lamellen

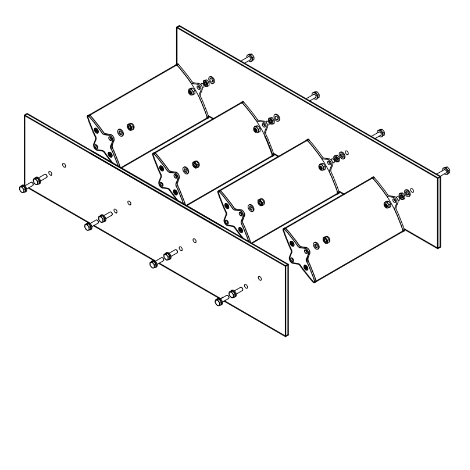

Horizontaal of onder een hoek uitkragende permanente zonwering waarbij een lamel tussen kopschotplaten wordt gemonteerd.

Materiaal

  • Lamel: Aluminium extrusieprofiel legering EN AW-6063 T66
  • Kopschotten: Aluminium of staal

Oppervlaktebehandeling

  • Geanodiseerd (20 micron) F1
  • Gepoedercoat in alle mogelijke RAL-, Sikkens, NCS en Interpon kleuren (60-80 micron)

Montagewijze

  • direct gemonteerd op / tussen de bouwkundige achterconstructie

Lameltype
Toepasbaar met alle Storax Icarus® lameltypes

Meer informatie nodig over de zonweringlamellen of uitwerkmogelijkheden in DWG of BIM?  Neem dan contact met ons op.
Enkel lamel vast horizontaal
Enkel lamel vast horizontaal
Enkel lamel vast horizontaal
Enkel lamel vast horizontaal
Enkel lamel vast horizontaal
Enkel lamel vast horizontaal

Meer informatie

  • Specificaties
  • Documentatie
  • Bestek

Specificaties

Maximale vrije overspanning
ST-IC Aero 650 Pa 800 Pa 1250 Pa
ST-ICA-100 2450 mm 2270 mm 1960 mm
ST-ICA-125 2800 mm 2600 mm 2225 mm
ST-ICA-150 3430 mm 3185 mm 2735 mm
ST-ICA-200 3740 mm 3460 mm 2970 mm
ST-ICA-250 4140 mm 3940 mm 3350  mm
ST-ICA-300 4610 mm 4520 mm 3850 mm
ST-ICA-400 5330 mm 5330 mm 4580 mm
ST-ICA-480 6000 mm 6000 mm 6000 mm

ST-IC Plano 650 Pa 800 Pa 1250 Pa
ST-ICP-060 1610 mm 1490 mm 1270 mm
ST-ICP-150 3850 mm 3850 mm 3540 mm
ST-ICP-200/30 3910 mm 3910 mm 3910 mm
ST-ICP-200/40 4730 mm 4730 mm 4730 mm
